Bay Oak Front Framed Garage With Stud Walls

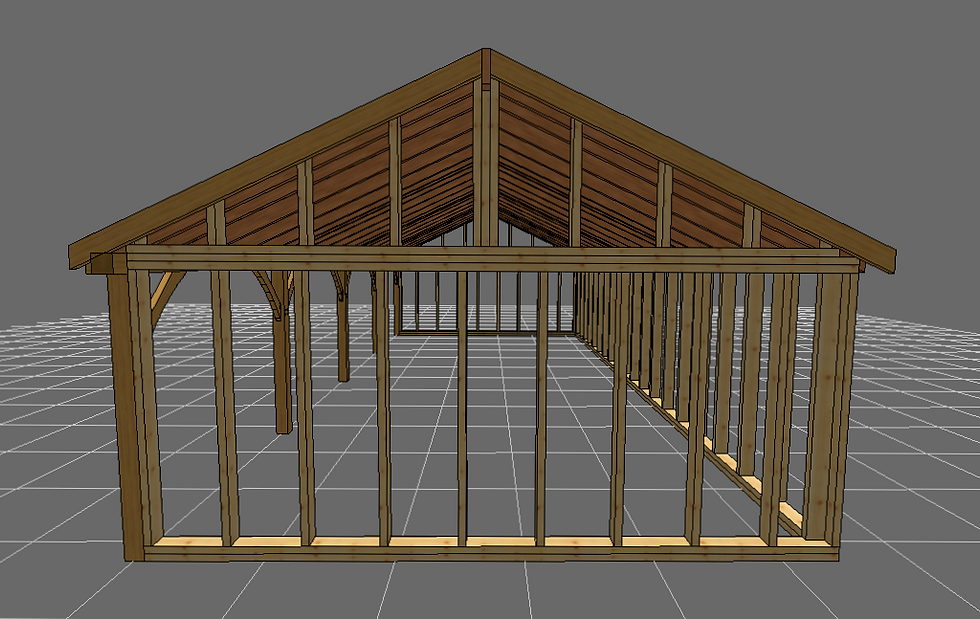

This price is for the structure in the CAD design
We are taking orders for our beautiful 4 bay garages, the one priced and pictured is a 12m x 5.5m oak front framed garage with a softwood roof. This one also includes the softwood stud walls ready for your preferred wall covering. Our eBay prices are VAT exclusive for the kit, also exclude delivery, installation or any extra options which are listed below. For full quotations please reach out to us directly.

Frame dimensions and materials:
Standard measurements:
Posts - 150mm x 150mm - Oak
Front Head-beam - 150mm x 150mm - Oak
Flat Knee braces in every relevant place - Oak
Roof Rafters - 150mm x 60mm - Pine
End roof rafters - 150mm x 60mm - Oak
Stud wall - 150mm x 50mm - Pine
Roof pitch - 30 degrees

(We can manufacture to bespoke sizes, please get in touch direct for quotes)

Key details:
Footprint - 1195mm x 5500mm
Bay size - 2800mm each
Ridge height - 3738mm
Ridge length - 12,250mm
Roof area - 76.4m²

Extras available:
2 and 3 Bay variants available
Frame increases to 170mm and 215mm
OSB on walls/roof
Tyvek wall membrane
2 types of roof covering - clay or slate tiles (others available upon request)
Ridge caps
Battens
Felt
Dry ridge systems
Dry verge systems
Oak and Pine tongue and groove boards

Collection and delivery is available upon request
(LEAD TIME: 4 - 12 WEEKS)
